Description
Key Features:
- M-Style safety air coupler designed for controlled pneumatic airflow and connection release.
- Features 1/4″ FNPT female national pipe threads.
- Push-button safety design stops airflow with one push and releases the plug with a second push.
- Provides air flow of up to 36 SCFM with a maximum inlet pressure of 300 PSI.
- Maximum temperature rating of 250?F with red button for easy identification.
Product Description:

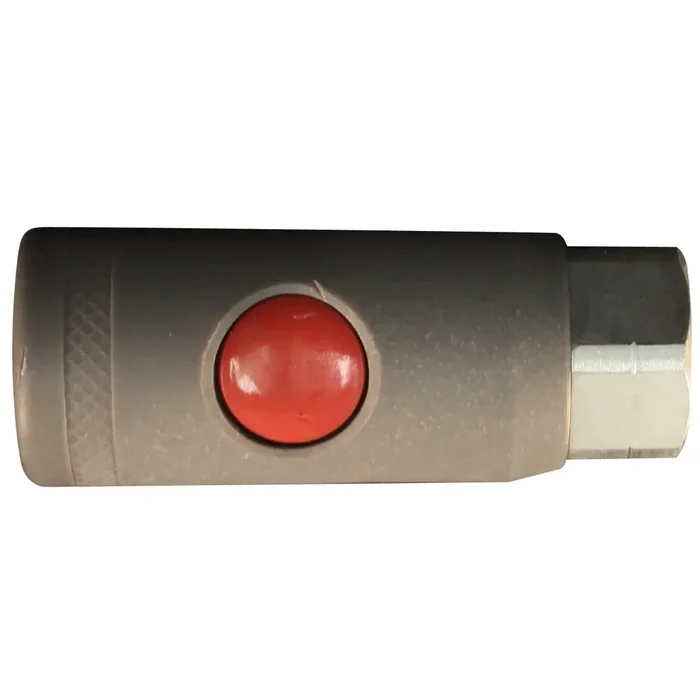

The Milton S-99705 M-Style safety air coupler is designed for pneumatic air connections requiring controlled airflow shutoff and plug release. This female coupler features 1/4″ FNPT female national pipe threads and a 1/4″ basic flow size. Its push-button safety operation allows the user to stop airflow with one push and release the plug with a second push. The coupler provides air flow of up to 36 SCFM, supports a maximum inlet pressure of 300 PSI, and has a maximum temperature rating of 250?F. The red button provides easy identification.
Specifications:
- Product Type: Safety Air Coupler
- Brand: Milton
- Model: S-99705
- Style: M-Style
- Thread: 1/4″ FNPT Female National Pipe Threads
- Basic Flow Size: 1/4″
- Air Flow: Up to 36 SCFM
- Maximum Inlet Pressure: 300 PSI
- Maximum Temperature: 250?F
- Button Color: Red
- Interchangeable Part Numbers: 54426, MILS99705
