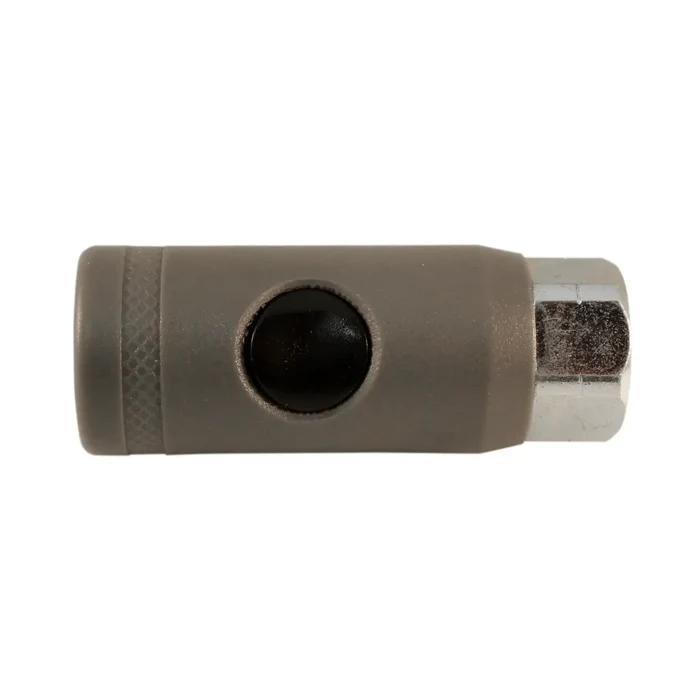

Safety Air Coupler Fitting M-Style 1/4″ FNPT Push Button 300 PSI 36 SCFM

Description

Key Features:

• M-Style safety air coupler with push-button operation for controlled airflow
• 1/4″ FNPT female national pipe thread connection
• Provides airflow of up to 36 SCFM with a 1/4″ basic flow size
• Maximum inlet pressure of 300 PSI
• Red button for easy identification and maximum temperature of 250?F

Product Description:

The Milton S-99705 M-Style safety air coupler is designed for pneumatic air applications where controlled disconnecting is important. Its push-button safety operation requires one push to stop airflow and a second push to release the plug, helping prevent possible injury or damage caused by accidental disconnects. The coupler features a 1/4″ FNPT female national pipe thread, 1/4″ basic flow size, airflow up to 36 SCFM, maximum inlet pressure of 300 PSI, and maximum temperature of 250?F.

Specifications:

• Brand: Milton
• Model: S-99705
• Coupler Style: M-Style?
• Product Type: Safety Air Coupler
• Connection: 1/4″ FNPT
• Thread Type: Female National Pipe Thread
• Basic Flow Size: 1/4″
• Air Flow: Up to 36 SCFM
• Maximum Inlet Pressure: 300 PSI
• Maximum Temperature: 250?F
• Button Color: Red
• Operation: Push once to stop airflow; push twice to release plug
