Description
Key Features:
Automatic tire inflation system with plug-and-play operation for fast, accurate air and nitrogen tire inflation.

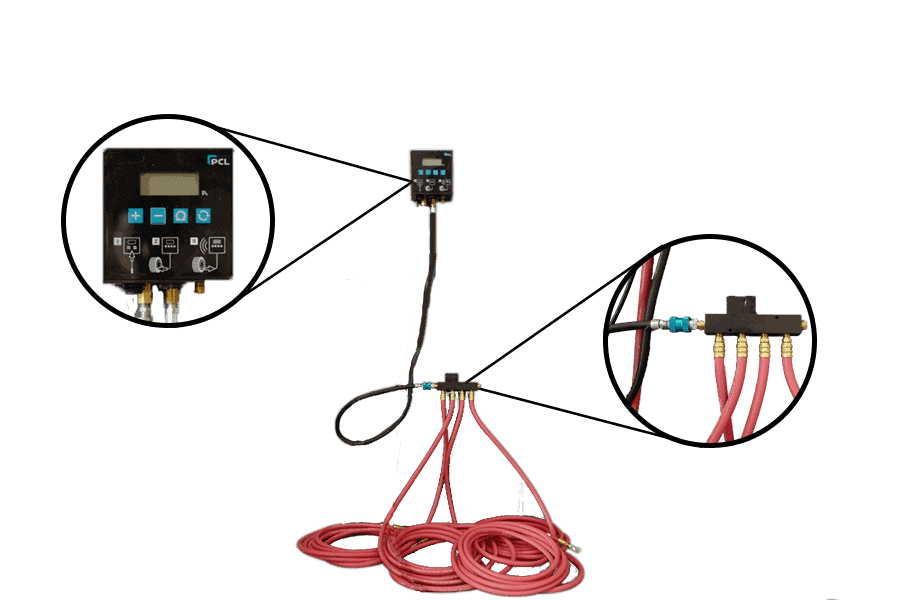

Includes four 25-foot hoses with single lock-on chucks for servicing multiple workstations or vehicles.
Three operating modes include standard inflate/deflate, tire shop with over-pressure protection, and nitrogen fill.
Touch capacitive controls, electronic pressure preset, and automatic start simplify operation while improving accuracy.
Compact wall-mountable design with ceramic pressure sensor, clear digital display, and low maintenance requirements.
Product description:

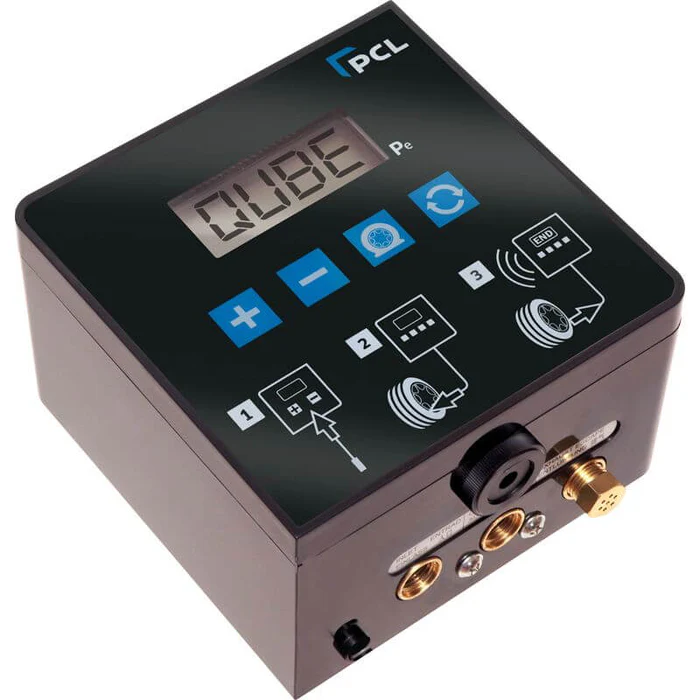

The PCL ACCURA QUBE Automatic Tire Inflator is a compact and efficient tire inflation system designed to deliver fast, safe, and accurate tire pressure management in professional automotive environments. Powered by a 110V supply, this plug-and-play unit includes four 25-foot hoses with single lock-on chucks, making it ideal for tire shops, commercial garages, dealerships, and fleet maintenance facilities. Featuring advanced electronic controls, touch capacitive technology, and a high-precision ceramic pressure sensor, the ACCURA QUBE provides reliable inflation accuracy while simplifying everyday tire service. Users simply preset the desired pressure, attach the chuck to the tire valve, and the automatic inflation system completes the process without constant supervision. Three selectable operating modes support standard inflation and deflation, tire shop operation with over-pressure protection, and nitrogen fill or air-to-nitrogen conversion. Designed for indoor wall-mounted installation, this compact unit combines space-saving convenience with dependable performance, comprehensive diagnostics, and low maintenance costs, making it an excellent solution for busy commercial service operations.
Specifications:
Brand: PCL
Model: ACCURA QUBE Series II
Power Supply: 110V
Hose Quantity: 4 Hoses
Hose Length: 25 Feet Each
Chuck Type: Single Lock-On Chuck
Inflation Range: 0?145 PSI
Maximum Supply Pressure: 217 PSI
Inflation Flow: 88 CFM
Pressure Sensor: Ceramic Sensor (?0.5 Full Scale Accuracy)
Operating Modes: Standard Inflate/Deflate, Tire Shop with Over-Pressure, Nitrogen Fill & Air-to-Nitrogen Conversion
Display: Digital Display with Touch Capacitive Controls
Auto Function: Automatic Tire Inflation with Auto-Start
Operating Temperature: -4?F to 158?F
Dimensions: 6″ x 6″ x 4″
Compliance: EC Directive 86/217 and BS EN 12645:1999
Mounting: Wall Mount (Indoor Use)
Includes: Individual Calibration Certificate
