Description
Key Features:
- 5 ton capacity K-Tool HD service jack for lifting applications
- 5.75″ to 22″ lift range provides the specified lifting height range

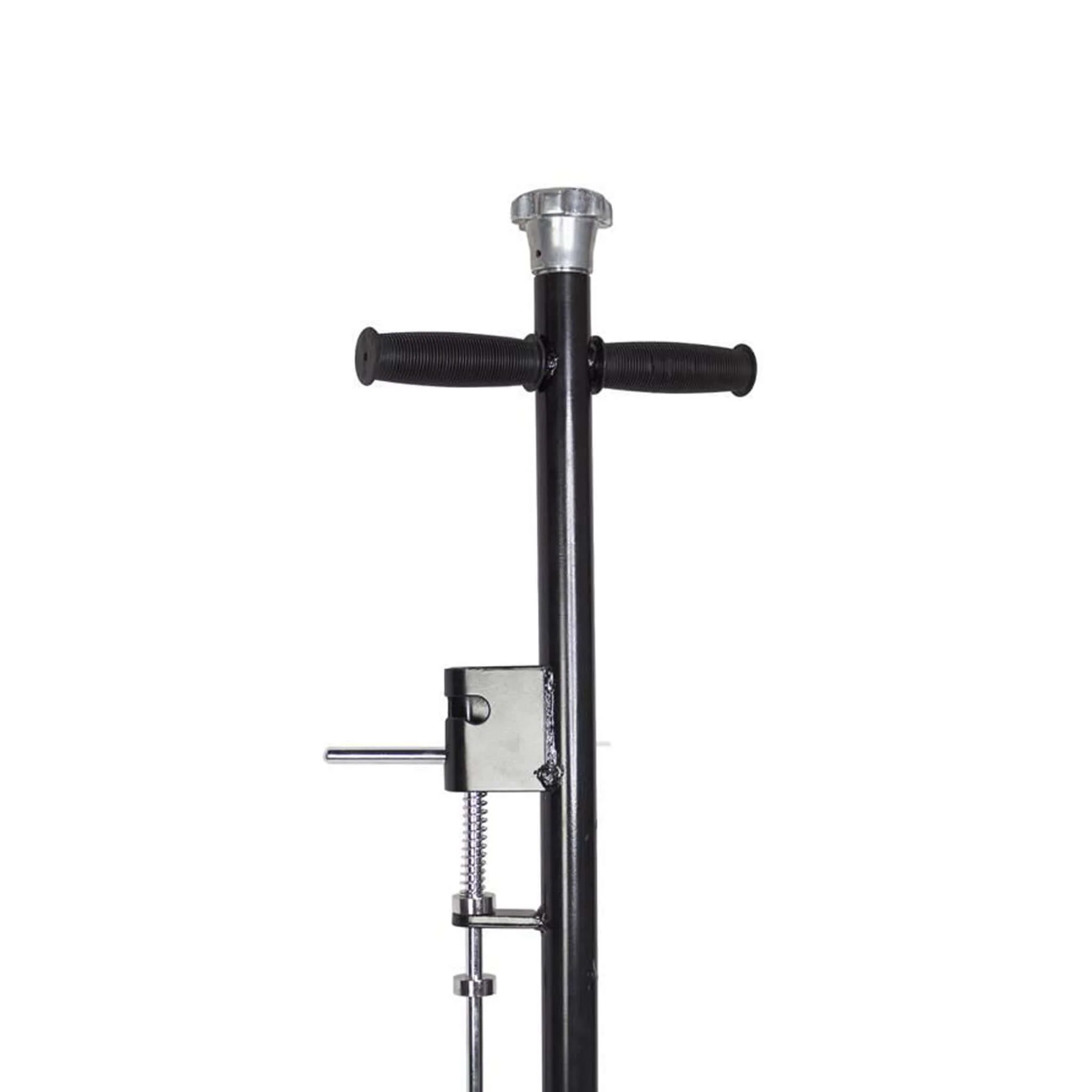

- 45.75″ pump handle with release knob that works independently of handle position

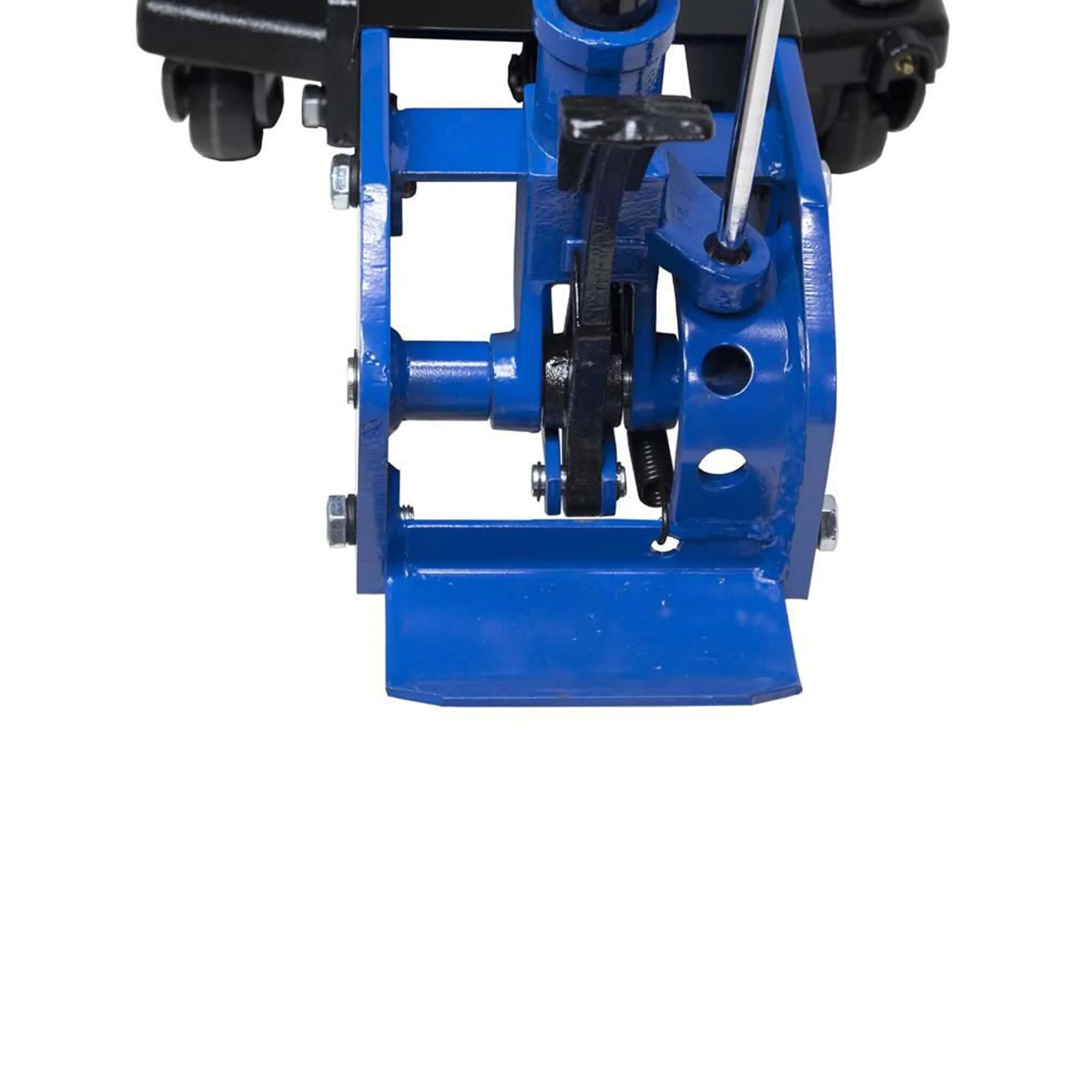

- Additional foot pedal allows the saddle to be raised quickly to the load
- Load-limiting and bypass valves help prevent use beyond rated capacity and over-extension of the ram
Product Description:

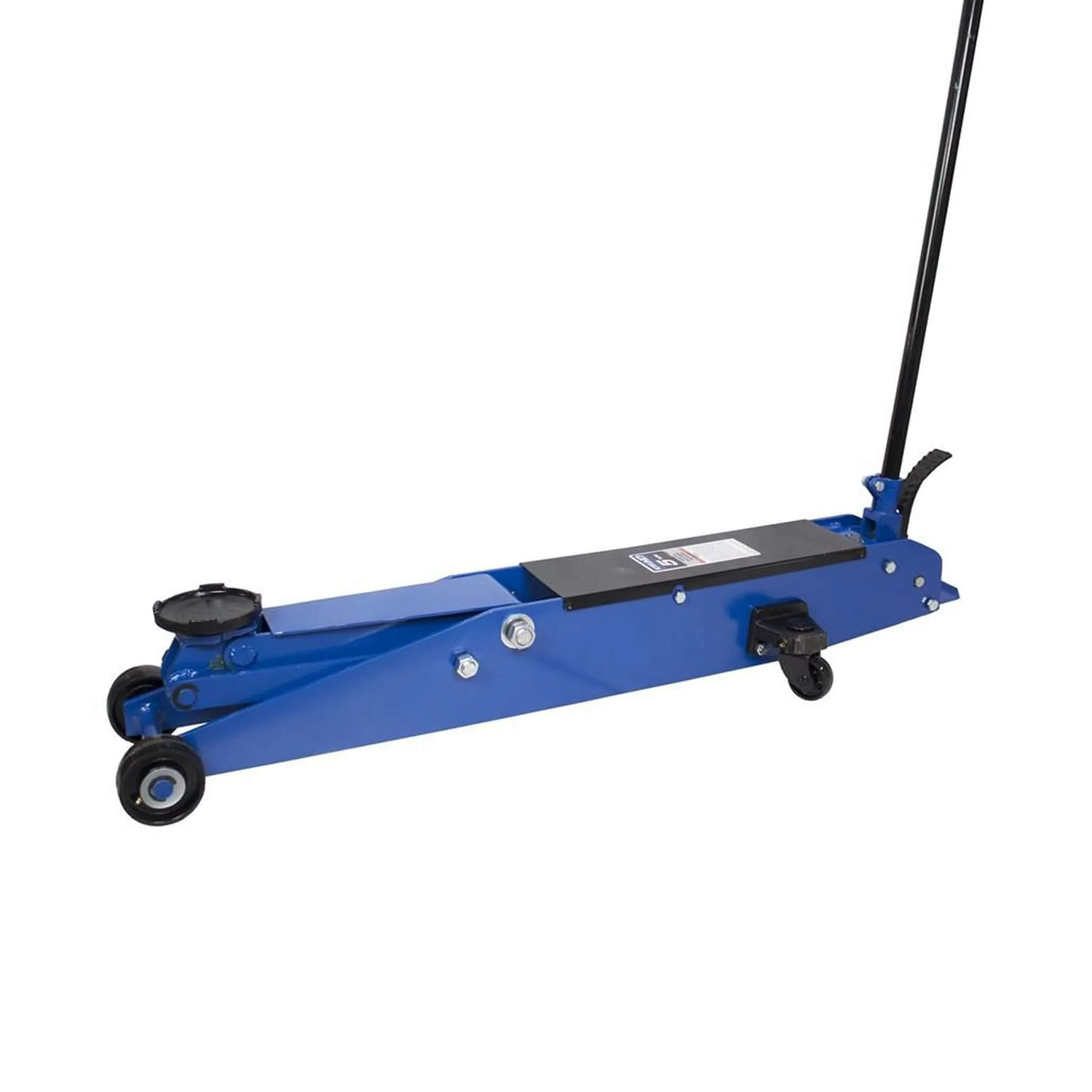

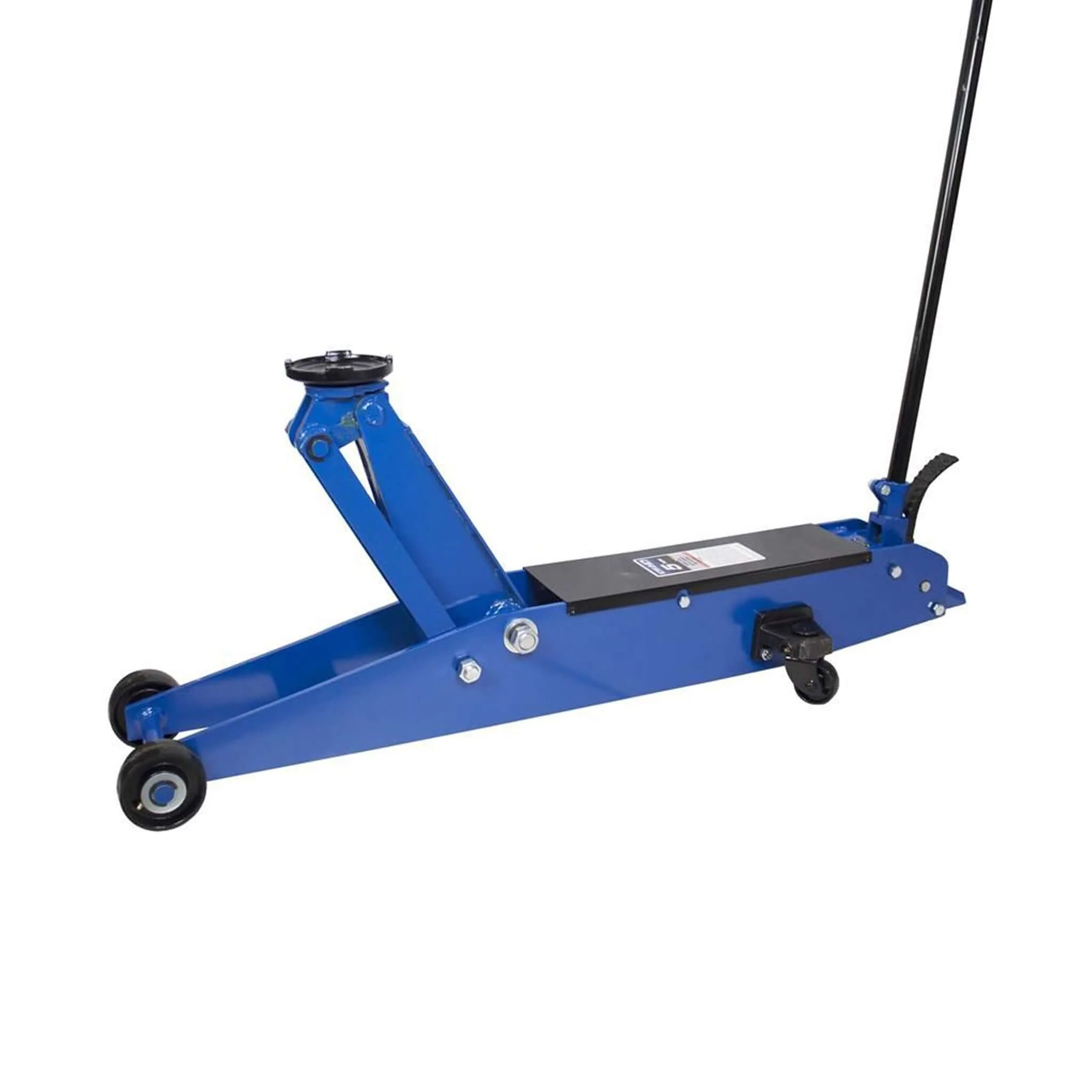

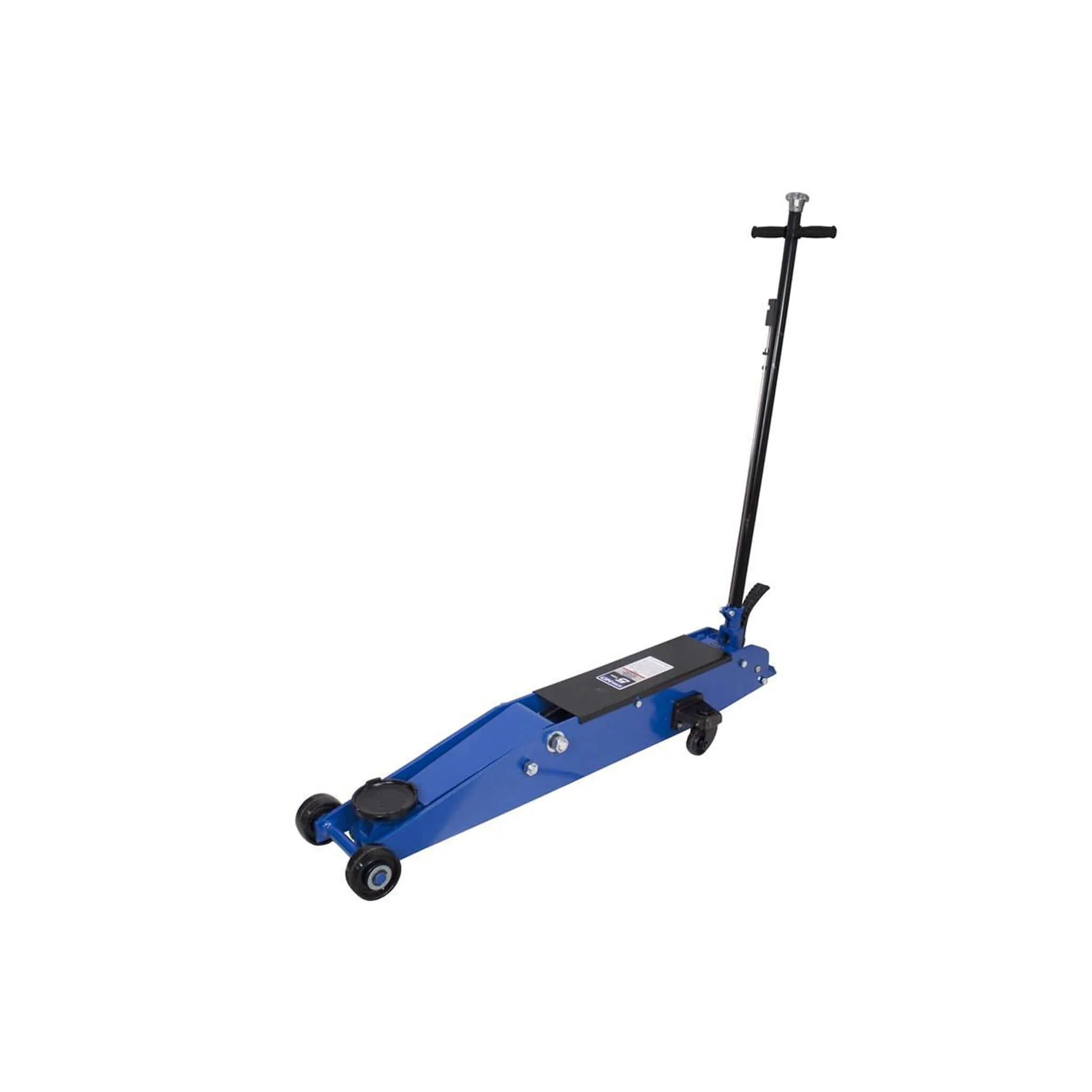

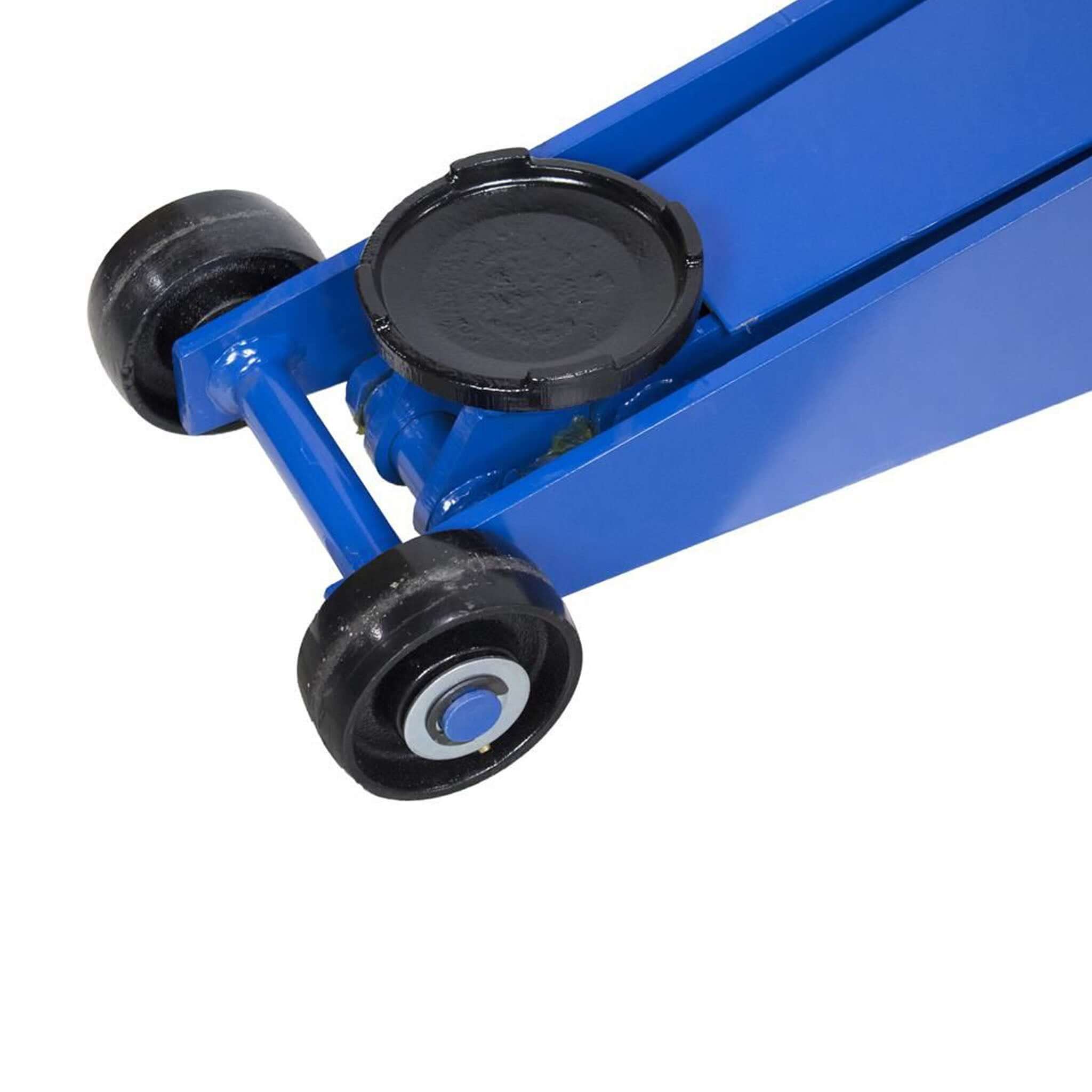

The K-Tool 5 Ton HD Service Jack is designed for lifting applications with a 5 ton capacity and a lift range from 5.75″ to 22″. The jack features a 45.75″ pump handle with a release knob that operates independently of handle position, along with an additional foot pedal for quickly raising the saddle to the load. Load-limiting and bypass valves help prevent the jack from being used beyond its rated capacity and prevent over-extension of the ram. The handle locks in vertical, 45 degree, or horizontal positions.
Specifications:
- Product Type: Service Jack
- Brand: K-Tool
- Model: HD
- Capacity: 5 ton
- Lift Range: 5.75″ to 22″
- Pump Handle Length: 45.75″
- Handle Positions: Vertical, 45 degree, or horizontal
- Features: Additional foot pedal, load-limiting valve, bypass valve
- Interchangeable Part Number: KTIHD63155
