Description
Key Features:
- Professional Gaither short bottle jack with 22 t/20 metric ton capacity
- Chrome main ram and chrome pump piston
- Pressed-thread extension screw for adjustment
- 6.61″ minimum height and 11.22″ maximum height
- Designed for use in both horizontal and vertical positions
Product Description:

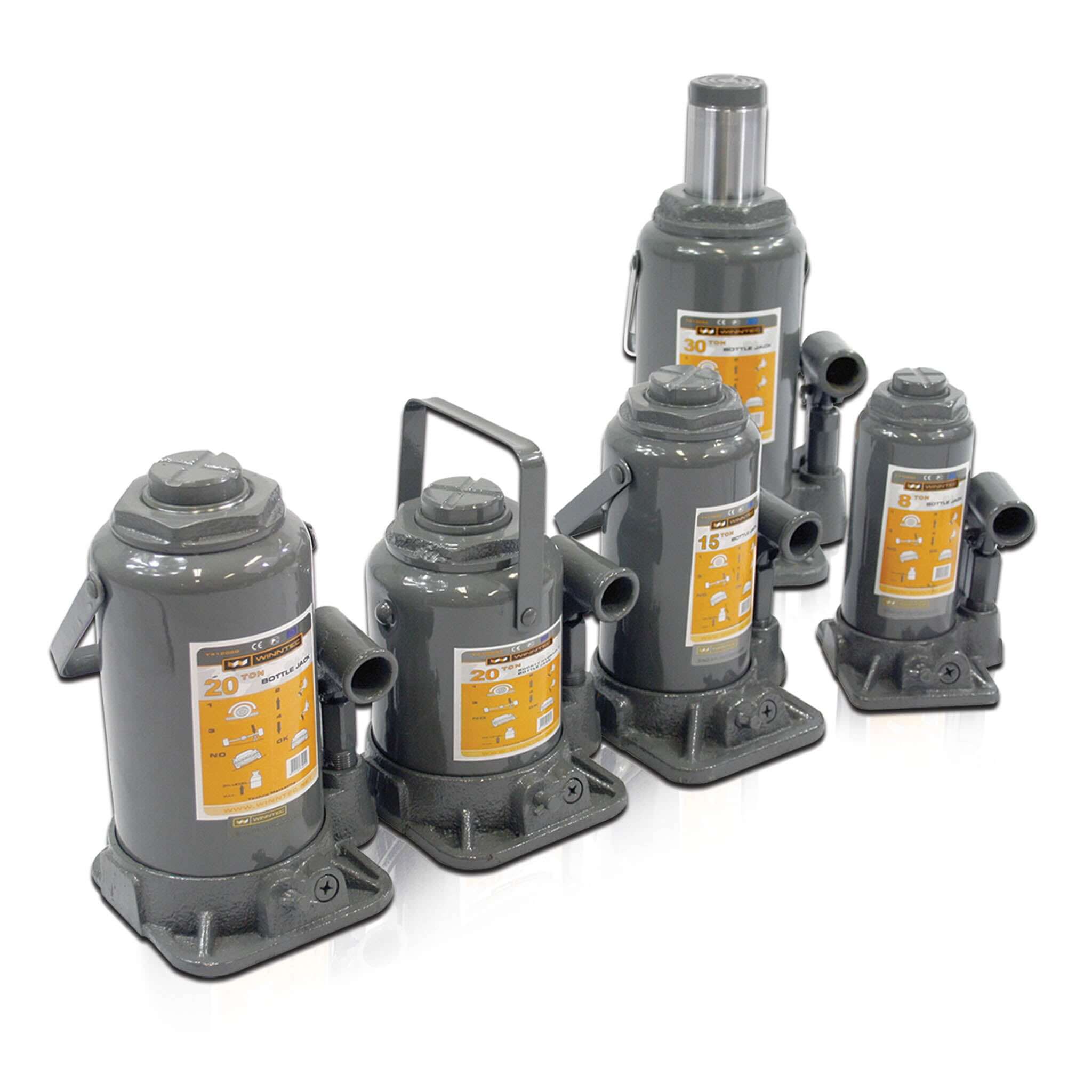

The Gaither 20 Ton Short Bottle Jack is a professional hydraulic bottle jack designed for lifting applications where a compact jack is required. It has a 22 t/20 metric ton capacity, a 6.61″ minimum height, and an 11.22″ maximum height with a 3.03″ hydraulic stroke. The jack features a chrome main ram, chrome pump piston, and pressed-thread extension screw. It can be used in both horizontal and vertical positions.
Specifications:
- Brand: Gaither
- Product Type: Short Bottle Jack
- Capacity: 22 t/20 metric tons
- Minimum Height: 6.61″ / 168mm
- Maximum Height: 11.22″ / 285mm
- Hydraulic Stroke: 3.03″ / 77mm
- Extension Screw: 1.57″ / 40mm
- Length: 5.91″ / 150mm
- Width: 6.26″ / 159mm
- Gross Weight: 20 lbs / 9.1kg
- Net Weight: 19.1 lbs / 8.7kg
- Main Ram: Chrome
- Pump Piston: Chrome
- Extension Screw Thread: Pressed thread
- Usage Position: Horizontal and vertical
