Description
Key Features:
- Gaither 20 Ton Bottle Jack with 22 t US capacity
- Minimum height of 9.53″ and maximum height of 18.58″
- 5.9″ hydraulic stroke and 3.15″ extension screw
- Chrome main ram and chrome pump piston
- Can be used in horizontal and vertical positions
Product Description:

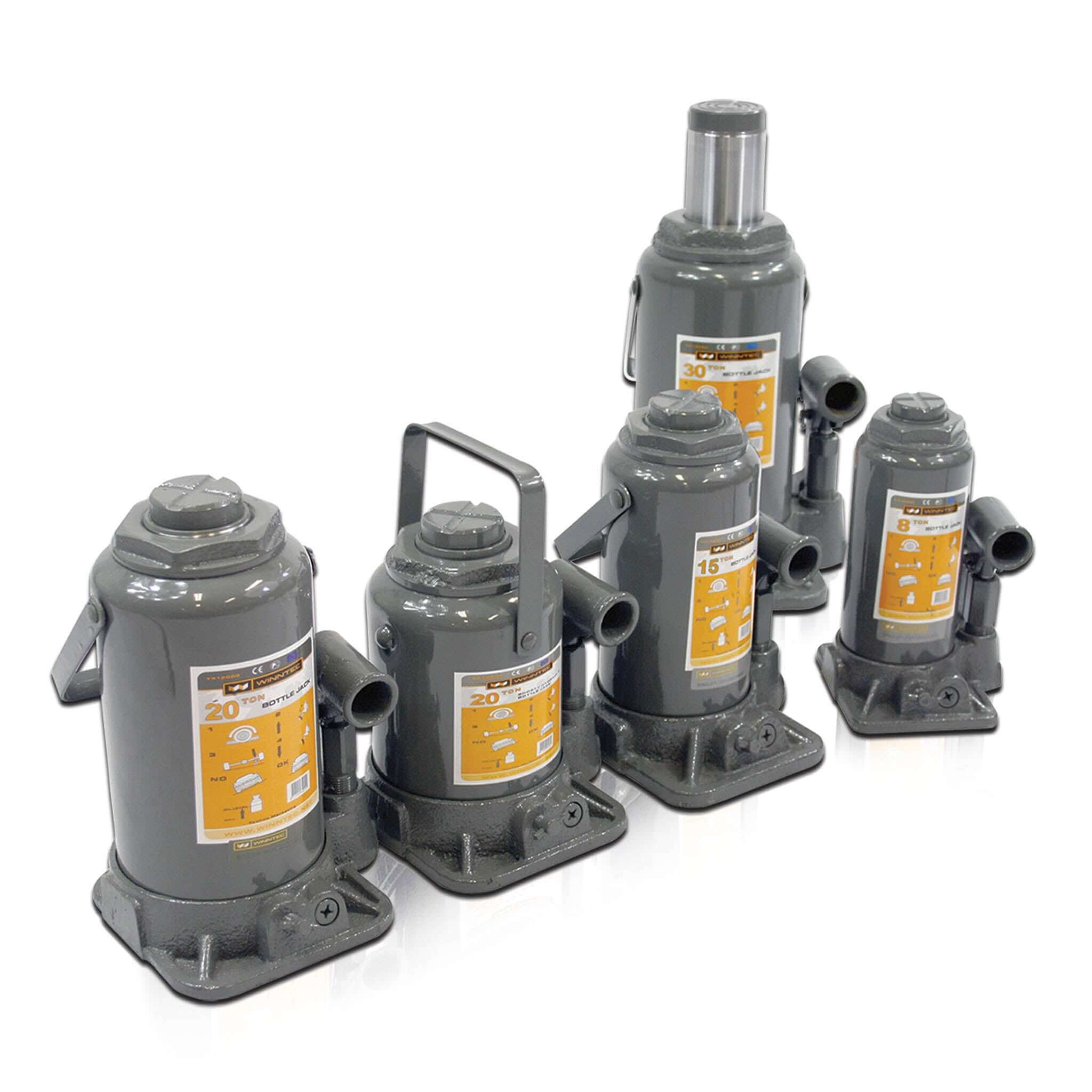

The Gaither 20 Ton Bottle Jack is a professional hydraulic bottle jack designed for heavy-duty lifting applications. The unit has a 22 t US capacity, a 9.53″ minimum height, an 18.58″ maximum height, and a 5.9″ hydraulic stroke. It features a chrome main ram and chrome pump piston, while the extension screw has a pressed thread. The jack can be used in both horizontal and vertical positions. Its extension screw measures 3.15″, with an overall length of 5.91″ and width of 6.26″.
Specifications:
- Product Type: Bottle Jack
- Brand: Gaither
- Capacity: 22 t / 20
- Minimum Height: 9.53″ / 242 mm
- Maximum Height: 18.58″ / 472 mm
- Hydraulic Stroke: 5.9″ / 150 mm
- Extension Screw: 3.15″ / 80 mm
- Length: 5.91″ / 150 mm
- Width: 6.26″ / 159 mm
- Main Ram: Chrome
- Pump Piston: Chrome
- Extension Screw Thread: Pressed thread
- Operating Positions: Horizontal and vertical
- Gross Weight: 22.45 lbs / 11.15 kg
- Net Weight: 23.7 lbs / 10.75 kg
