Description
Key Features:
- Heavy-duty duplex air compressor with dual 5 HP motors delivering a combined 10 HP for continuous-duty performance.
- Equipped with two Champion R-15B splash-lubricated reciprocating compressor pumps for dependable airflow and long service life.
- Large 120-gallon horizontal air tank provides increased air storage for high-demand industrial and automotive applications.
- Produces up to 43.2 CFM at 80 PSI, 42.0 CFM at 125 PSI, and 34.0 CFM at 175 PSI for powering a wide range of pneumatic equipment.
- Rugged industrial construction is designed to deliver reliable performance, durability, and long operating life in demanding workshop environments.
Product Description:

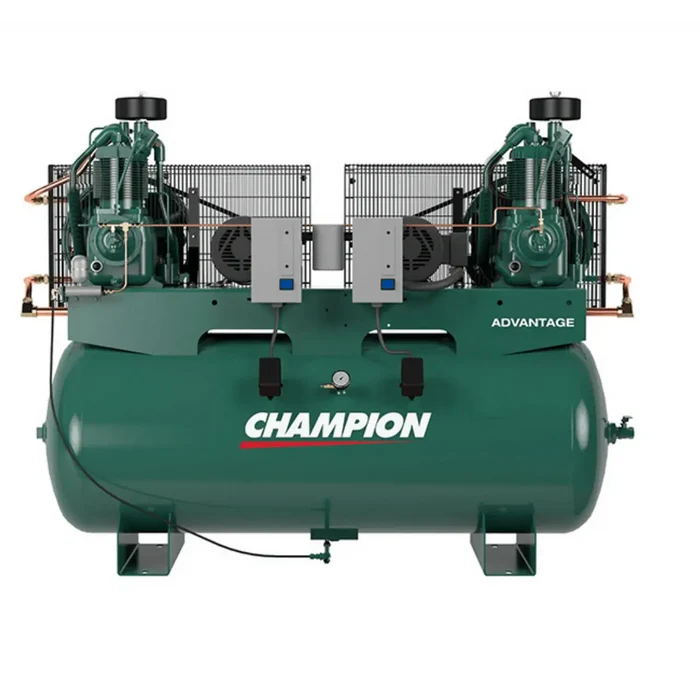

The Champion 5HP Duplex Air Compressor is engineered to provide dependable compressed air for professional automotive, industrial, and commercial applications. Featuring dual 5 HP motors with two R-15B reciprocating compressor pumps, this duplex system delivers a combined 10 horsepower and high-volume airflow for continuous operation. The large 120-gallon horizontal air tank offers ample air storage to reduce cycling and maintain consistent pressure during demanding workloads. Built with Champion’s proven splash-lubricated R-Series compressor pumps, this unit combines durability, efficiency, and long service life, making it an excellent choice for repair shops, manufacturing facilities, maintenance departments, and other professional environments.
Specifications:
- Product Type: Duplex Air Compressor
- Brand: Champion
- Motor Power: (2) 5 HP Motors (10 HP Total)
- Compressor Pumps: (2) Champion R-15B Reciprocating Pumps
- Pump Type: Splash-Lubricated, Two-Stage
- Cylinders: 2 Per Motor
- First Stage Bore: 4.63″
- Second Stage Bore: 2.50″
- Stroke: 3″
- Oil Capacity: 2 Quarts
- Operating Speed: 400??050 RPM
- Tank Capacity: 120 Gallons
- Tank Orientation: Horizontal
- Dimensions: 75″ ? 33″ ? 54″
- Air Delivery: 43.2 CFM @ 80 PSI, 42.0 CFM @ 125 PSI, 34.0 CFM @ 175 PSI
- Application: Automotive, Industrial, Commercial Air Supply
- Interchangeable Part Number: HR5D-12
